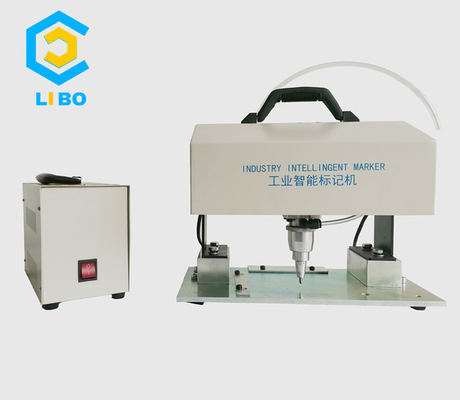

Hot sale BX-90*160 portable factory nameplate machine dot pin marking machine india
Marking Head dimension
|
Machine Name |
BX-Portable Marking machine |
|
Model |
BX-90X160 |
|
Dimension(L*W*H) |
400X202X265mm |
|
Standard Marking Area |
90X160 mm |
|
Optional Marking Area |
100x200mm ,200x300mm,300x400mm |
|
Marking Content |
All kinds of characters, serial numbers, VIN codes and graphics anti – counterfeiting marks,Various fonts can be selected and loaded |
|
Marking Depth |
0.01~2mm |
|
Marking Speed |
≤50mm/second (Characters height of 3mm/3-4 numbers/s) |
|
Marking Accuracy |
0.01mm |
|
Pin Hardness |
63HRC |
|
Air Pressure |
0.2-0.6Mpa |
|
Machine Power |
220±10%,50HZ (customized) |
|
Working Environment |
-5~40℃ |
|
Marking Head Weight |
5Kg |
|
Whole Machine Weight |
25KG |
FAQ
1. How can I get the best machine for me? You can tell us your working material, detail work by picture or video so that we can judge whether our machine
can meet your need or not. Then we can give you the best model depends on our experience.
2.This is the first time I use this kind of machine, is it easy to operate? We will send you manual and guide video in English, it can teach you how to operate the machine.
If you still can not learn how to use it, we can talk by phone, email or other contact ways.
3.When I get this machine, but I don’t know how to use it. What should i do? We will send you the English manual and CD video for machine using and maintaining with machine. If you still have some doubts, we can talk by telephone or skype.
4.How about the packaging ? First, wrap the machine with film. Then put it in a non-fumigation box and fill it with foam. Finally fasten the wooden box with a steel belt.
